Valentini Atilla Series Tractor 3-Point Rock/Stone Crushers -- Iowa Farm Equipment

Valentini Atilla Series Rock & Stone Crushers,
Soil Stabilizer & Shredder, Asphalt Pulverizer/Grinder

Grinding Embedded Limestone Outcroppings In 1-Pass!

ATILLA SERIES STONE CRUSHERS FOR 200-450HP TRACTORS

As with ALL Valentini Crushers, the Atilla Series has been providing Superior Single Pass Results in All Applications: Land Reclamation, Agriculture (Row Crop Fields, Produce Rows, Pastures, Seed Bed Preparation, Horticultural Benches & Rows, Vineyards, Orchards, Groves, etc.), Roadway Maintenance & Paving (Gravel & Chip Seal Roads, Asphalt Roads & Highways), as well as Rough or Finish Grading in Pre & Post Construction Applications. From Rock & Stone Crushing, Stump Mulching, Soil Shredding, to Soil Stabilization, and Asphalt Pulverizing/Grinding, Valentini Crushers Have Been CRUSHING IT for Decades!!! In the Sample Videos Below, You'll See Evidence of the Superior Single Pass Performance, Even Shaving Tops off of the Outcroppings of Embedded Boulders,
Even at Work Crushing & Pulverizing Limestone!

STANDARD FEATURES:

Category 3, 3-Point Hitch.
Single Speed Unit, 1000RPM.
Cam Clutch Protected Main PTO Shaft.
- It Doesn't Get Any Better Than A Cam Clutch, The Most Efficient & Reliable Driveline Protection Available:
  - No Maintenance, With Automatic Clearing & Resetting After Locked Rotor Conditions!
All Models are Dual Transmission Units with Slip Clutch Protected Side Drive Shafts.
Crushers 'Diminishing Chamber' is Comprised of the Following:
- Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
- Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
- Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.
  - Containment Door Constructed for Extreme Service Duty & Wear Resistance.
- Crusher Body Internal Hardox Lining is Replaceable.
Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
- Keep Front Gate Closed for Max Deflector use, or Open For Max Working Depth.
Extreme Service Duty Rotor is Shock & Wear Resistant.
Rotor Working Diameter, Tip to Tip:
- 31.5” ‘L’ Series.
- 36” ‘N’ Series.
- 45.5” ‘M’ Series.
1-3/8” Diameter Tooth Shanks & Holders.
- Tooth 'Holders' are Welded to the Rotor.
- Teeth are Fixed in Holders with Snap Rings for Easy Service!
Central & Side Gear Drives in Oil Bath Gearboxes.
- Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
- Dual Transmission Units have Oil Bath Gearboxes on Both Sides.
Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Hydraulically Adjusted Rear Skid Shoes.
Safety Covers & Guards.

For Single-Pass Deep Grinding, Valentini’s Protruding Rotors Keep the Machine Out of the Ground, Reducing Resistance & Power Consumption, Dramatically Increasing Fuel Efficiency, and Allowing for Better Ground Speeds!

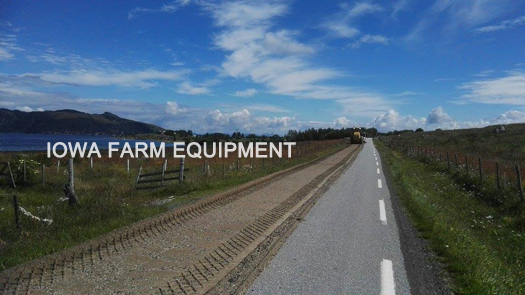

Asphalt Milling/Grinding

Limestone Crushing Results

Grinding in Thick Shale

Efficiently Recovering Wasteland for Ag Use

Deep, Efficient, Single-Pass Stone Crushing

Asphalt Milling/Grinding

ATTILA SERIES CRUSHER SPECIFICATIONS
MODEL	1800DT			2000DT			2300DT			2500DT		2800DT		3000DT
MODEL	L	N	M	L	N	M	L	N	M	L	N	L	N	L	N
Tractor Horsepower	200-450HP	220-450HP	320-450HP	220-450HP	240-450HP	340-450HP	240-450HP	280-450HP	360-450HP	280-450HP	320-450HP	300-450HP	340-450HP	320-450HP	360-450HP
Rotor Diameter	31.5"	36"	45.5"	31.5"	36"	45.5"	31.5"	36"	45.5"	31.5"	36"	31.5"	36"	31.5"	36"
Working Width	5'-9"			6'-7"			7'-5"			8'-3"		9'-1"		9'-11"
Overall Width	7'-3"			8'-1"			8'-11"			9'-9"		10'-7"		11'-5"
Quantity of Teeth	152	170	228	170	185	265	198	220	302	214	238	232	256	250	274
Side Drive Gears (Qty)	4		6	4		6	4		6	4		4		4
Working Depth on Passive Surfaces* (e.g. Dirt, Gravel, Sod, etc.)	16"	20"	28"	16"	20"	28"	16"	20"	28"	16"	20"	16"	20"	16"	20"
Working Depth on Non-Passive Surfaces** (e.g. Asphalt, Sheets of Granite, etc.)	7.5"	10.6"	16"	7.5"	10.6"	16"	7.5"	10.6"	16"	7.5"	10.6"	7.5"	10.6"	7.5"	10.6"
Weight (lbs.)	11,550	11,660	14,740	12,210	12,760	15,840	12,980	14,080	16,940	13,640	14,960	14,300	15,840	14,960	16,720
Weights are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
This dimension represents Maximum Single Pass Working Depth, subject to moderate ground conditions, allowing Max. Plow Share & Skid penetration. *This dimension represents the distance from the Tip of the Teeth, to the bottom of the Skid Shoes – typically applicable to determining Max. Single Pass Milling Depth (on Asphalt, Chip Seal Roads & other Hard Surfaces).

ATTILA SERIES CRUSHER SPECIFICATIONS
MODEL	1800DT			2000DT			2300DT			2500DT		2800DT		3000DT
MODEL	L	N	M	L	N	M	L	N	M	L	N	L	N	L	N
Tractor Horsepower	200-450HP	220-450HP	320-450HP	220-450HP	240-450HP	340-450HP	240-450HP	280-450HP	360-450HP	280-450HP	320-450HP	300-450HP	340-450HP	320-450HP	360-450HP
Rotor Diameter	31.5"	36"	45.5"	31.5"	36"	45.5"	31.5"	36"	45.5"	31.5"	36"	31.5"	36"	31.5"	36"
Working Width	5'-9"			6'-7"			7'-5"			8'-3"		9'-1"		9'-11"
Overall Width	7'-3"			8'-1"			8'-11"			9'-9"		10'-7"		11'-5"
Quantity of Teeth	152	170	228	170	185	265	198	220	302	214	238	232	256	250	274
Side Drive Gears (Qty)	4		6	4		6	4		6	4		4		4
Working Depth on Passive Surfaces* (e.g. Dirt, Gravel, Sod, etc.)	16"	20"	28"	16"	20"	28"	16"	20"	28"	16"	20"	16"	20"	16"	20"
Working Depth on Non-Passive Surfaces** (e.g. Asphalt, Sheets of Granite, etc.)	7.5"	10.6"	16"	7.5"	10.6"	16"	7.5"	10.6"	16"	7.5"	10.6"	7.5"	10.6"	7.5"	10.6"
Weight (lbs.)	11,550	11,660	14,740	12,210	12,760	15,840	12,980	14,080	16,940	13,640	14,960	14,300	15,840	14,960	16,720
Weights are Less Pallets, Crates & PTO Shaft.
(DT) Denotes Double Transmission
This dimension represents Maximum Single Pass Working Depth, subject to moderate ground conditions, allowing Max. Plow Share & Skid penetration. *This dimension represents the distance from the Tip of the Teeth, to the bottom of the Skid Shoes – typically applicable to determining Max. Single Pass Milling Depth (on Asphalt, Chip Seal Roads & other Hard Surfaces).

Specifications & Designs Are Subject to Change Without Notice
